Compressed air generator for kitchen extraction
system cleaning

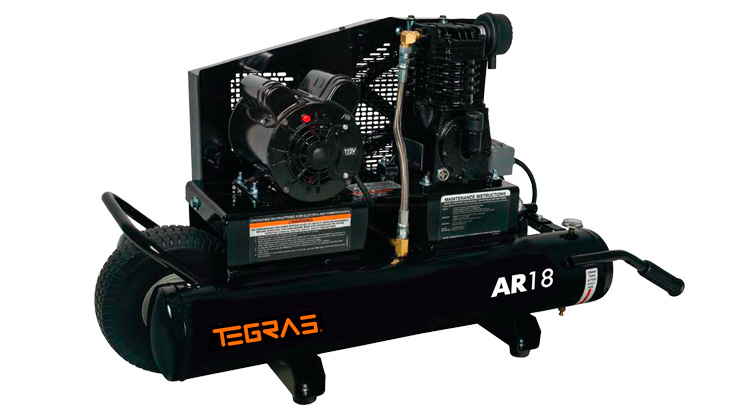

AR 18 COMPRESSED AIR GENERATOR FOR KITCHEN EXTRACTION SYSTEM CLEANING

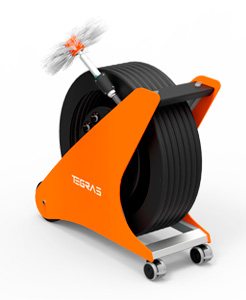

Pneumatic brushing equipment requires compressed air for operation. For this reason, we have designed air generators that adapt to the requirements of work to be done with the best performance: Maximum air flow and pressure in single-phase connection, low noise level for night work, being able to work continuously without heating, and also a great portability.
This compressor is intended for countries with a 110V – 60 Hz voltage
TECHNICAL SHEET
| Power supply | 110 V 60 Hz |
| Nominal pressure | 9 bar | 125 psi |
| Flow rate | 370 l/min |
| Output flow (5 bar) | 280 l/min |
| Flow rate (6,27 bar) | 9,2 cfm | 260 l/min |
| Motor power | 2.0 HP | 120V | 18.8A |
| Sound level | 79 dB |
| Operating principle | Piston |
| Tank size | 30 litres | 8 gal |
| Plug type | NEMA 5-20P |
| Dimensions (L x W x H) |
1135 x 470 x 635 mm 44,5 x 18,5 x 25 inch |
| Weight | 84 kg | 183 lb |
This compressor is intended for countries with a 110V – 60 Hz voltage
Industrial kitchens have an extraction system designed to extract fumes and odours. The extracted fumes have a high fat content that accumulates in the filters, hood, ducts and fans.
The International Kitchen Exhaust Cleaning Association (IKECA) is the worldwide premier organization for kitchen exhaust cleaners.
Tegras is a member of IKECA, so when you buy our equipment, you should expect a high level of performance from it.
