DESCRIPTION
THE MOST ADVANCED FOAM GENERATOR FOR THE CLEANING OF EXTRACTION SYSTEMS
iFoam Pro provides everything you need to clean hoods, plenums,
and exhaust system motors in a single unit.
WHY IFOAM PRO?

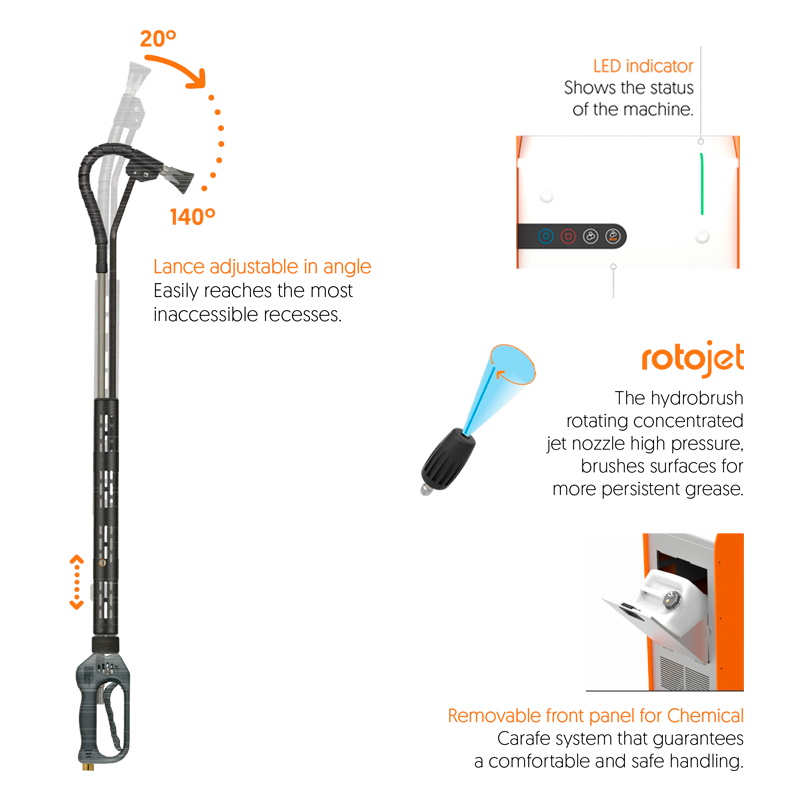

- Through its Multijet system, it automatically regulates all the degreasing foam generation parameters, guaranteeing the perfect adherence of the chemical to any surface and effectively dissolving grease.
- Includes high pressure rinsing mode (150 bar).
- Hydro-brushing, Rotojet, to remove stubborn grease.
- Adjustable lance angle. Easily reaches even the most inaccessible recesses.
SPECIFICATIONS
TECHNICAL SHEET
| Electric power supply | 230 V 50Hz | 110 V 60 Hz |
| Power consumption: | 10,7 A | 21,4 A |
| Power: | 2350 W |1500 W |
| Hydraulic supply Maximum temperature: |
Min. pressure .1 bar | 14,5 psi – 60ºC | 140 F |
| Hose length: | 10 meters | 33 ft |
| High pressure pump | 150 bar 2175 psi 150 bar2175 psi |
| Low pressure pump | 8 bar | 116 psi |
| Noise level | < 70 dB |

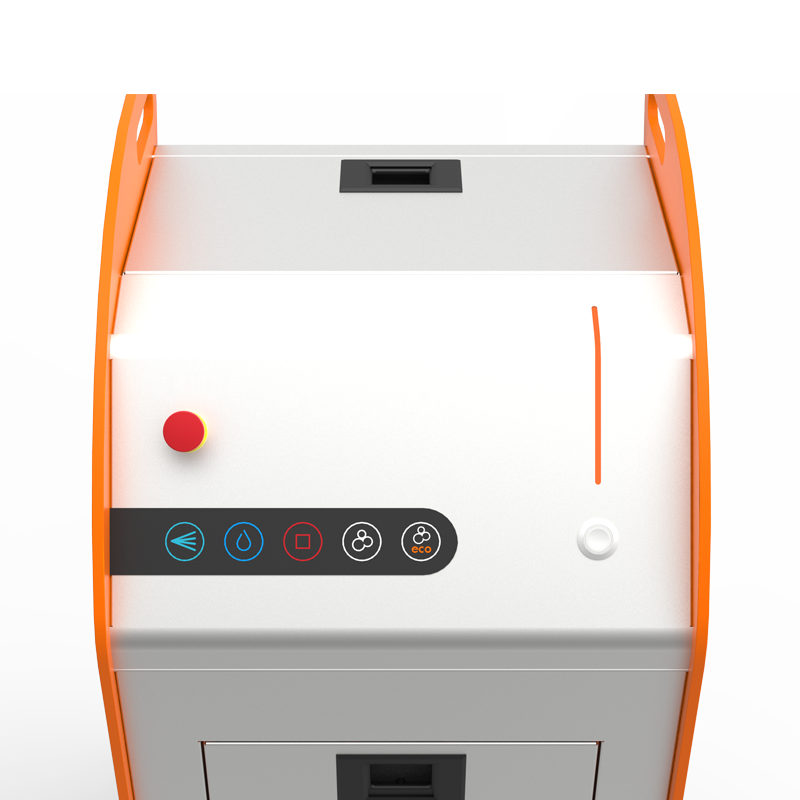

| Control panel | Membrane keyboard |
| Structure material | Stainless steel & HDPE |
| Dimensions (L x W x H) |
570 x 430 x 1040 mm
22.5 x 17 x 41 inch |
| Unloaded weight | 55 kg | 121 lb |
APPLICATIONS
Advanced active foam generator for cleaning hoods
Industrial kitchens have an extraction system designed to extract fumes and odours. The extracted fumes have a high fat content that accumulates in the filters, hood, ducts and fans.
The International Kitchen Exhaust Cleaning Association (IKECA) is the worldwide premier organization for kitchen exhaust cleaners.
Tegras is a member of IKECA, so when you buy our equipment, you should expect a high level of performance from it.
GALLERY

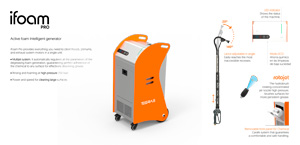

CATALOGUE
CATALOGUE
INCLUDED ACCESORIES
ADJUSTABLE LANCE
Foam injection andhigh pressure rinsing.HOSE
High pressure liquid connection 26.24ft
ROTATING NOZZLE ROTOJET
Highpressure rinsingTEGRAS duct cleaning brushes
Discover the air duct brushes guide for your Tegras duct cleaning equipment. See more about DUO SQUARE for the cleaning of square ducts.
OPTIONAL ACCESORIES
HOSE REEL

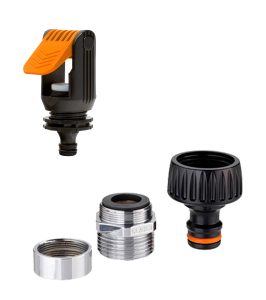

For mains water.UNIVERSAL TAP ADAPTER AND TAP CONNECTION FOR THREADED SOCKETS
CONSUMABLES
COMEGRAS
Ultra-concentrated degreaser. 22 lb Jerrycan.RELATED EQUIPMENTS
ibrush
Portable exhaust duct cleaning machine which facilitates its use in places with poor accessibility such as rooftops.
